Description
The permeability (K) of disturbed samples of sand and imported fill can be quickly and easily measured using the ETC Simplified Falling Head Permeameter Kit manufactured by Dynamic Monitors, a business unit of Engineering Technologies Canada Ltd. (ETC).
The ETC Simplified Falling Head Permeameter Kit is based on the device and methodology outlined in the Nova Scotia Onsite Technical Guidelines. ETC has developed a user-friendly kit and guide which can be used in the field, or in the lab. This permeameter kit is most appropriate for testing clean “fast” sands which are very permeable. The range of hydraulic conductivity (K) values that this test device is appropriate for is in range of 1E-06 m/sec (3 inches/day) to 8E-03 m/sec (27,000 inches/day) which generally applies to coarse sands to silty sands.
Note: Fill/soil containing significant amounts of silt and clay, i.e. more than 15% passing the 75um (#200) sieve, is not recommended for testing using this device, as erroneously low permeability results may be obtained. This is due to the “fines” going into suspension, then settling out and creating a hydraulically limiting layer.
Click here to review a document which summarizes the difference between the Simplified Falling Head Permeameter and the ETC Pask Constant Head Permeameter.
Advantages of ETC Falling Head Permeameter Kits:
- Very light and easy to transport
- Inexpensive – “do it yourself” and reduce reliance on outside materials testing labs
- Very fast – A test on most clean, fast sands can usually be completed in only 10 to 30 minutes. Multiple tests can be done at the site in a short span of time.
- A small amount of water is needed, typically only 1 gallon (4 L) per test.
- Very visual; easy for homeowners and customers to see how it works and to understand why the fill is “good” or not.
- Calculations are made easy using ETC’s Quick Reference Chart.

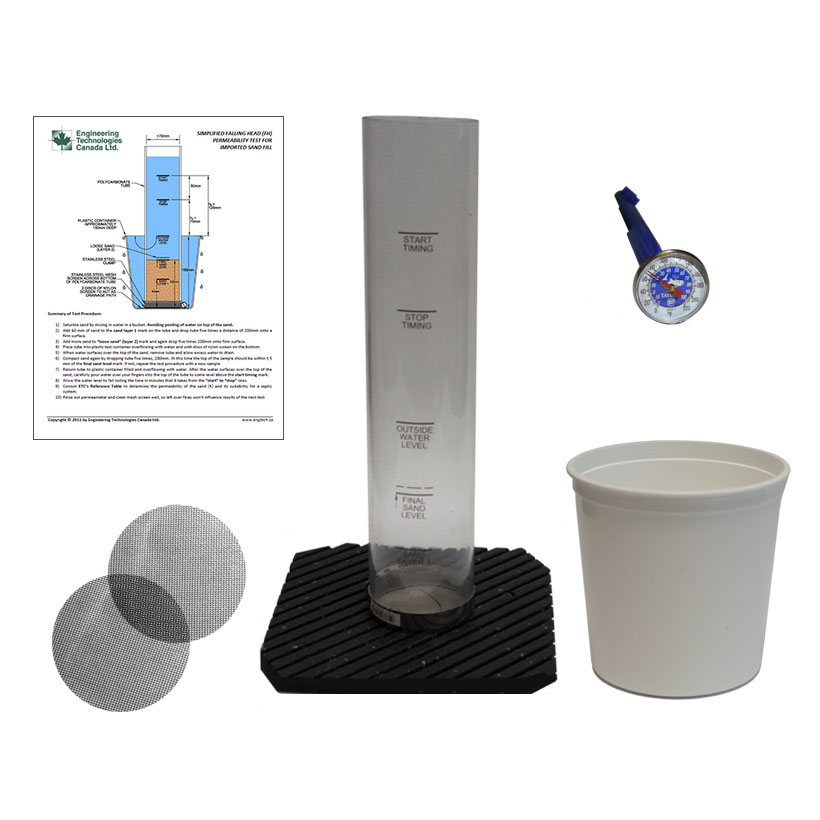

Kit Includes the Following:

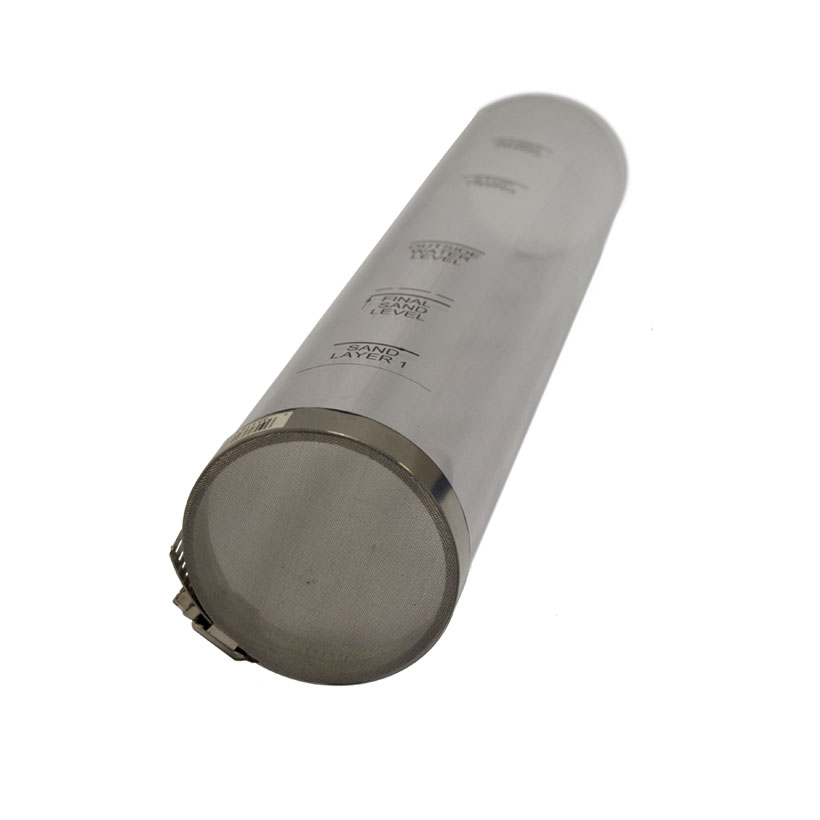

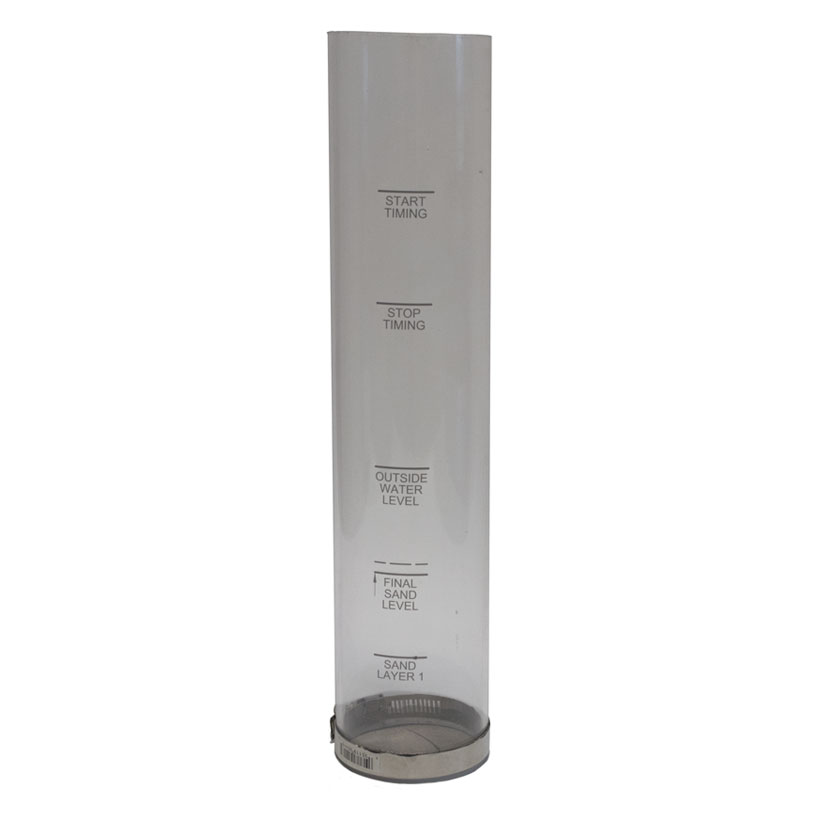

- Falling Head Permeameter

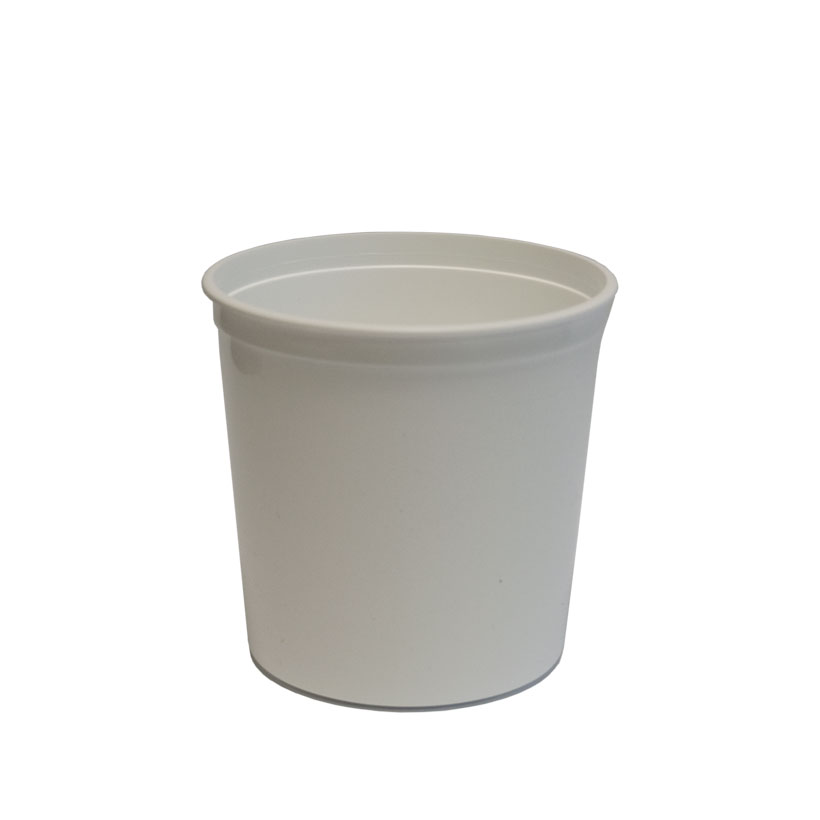

- Plastic test container

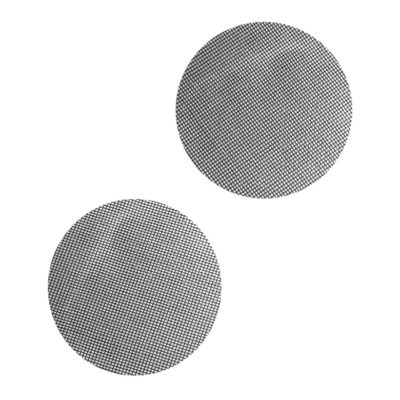

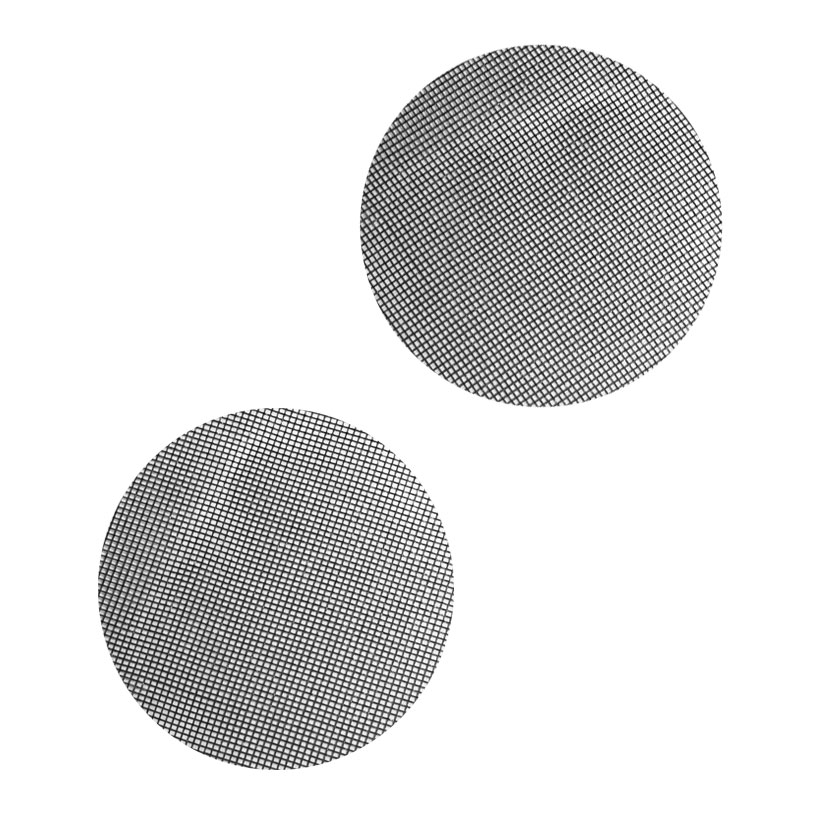

- Discs of nylon screen (2)

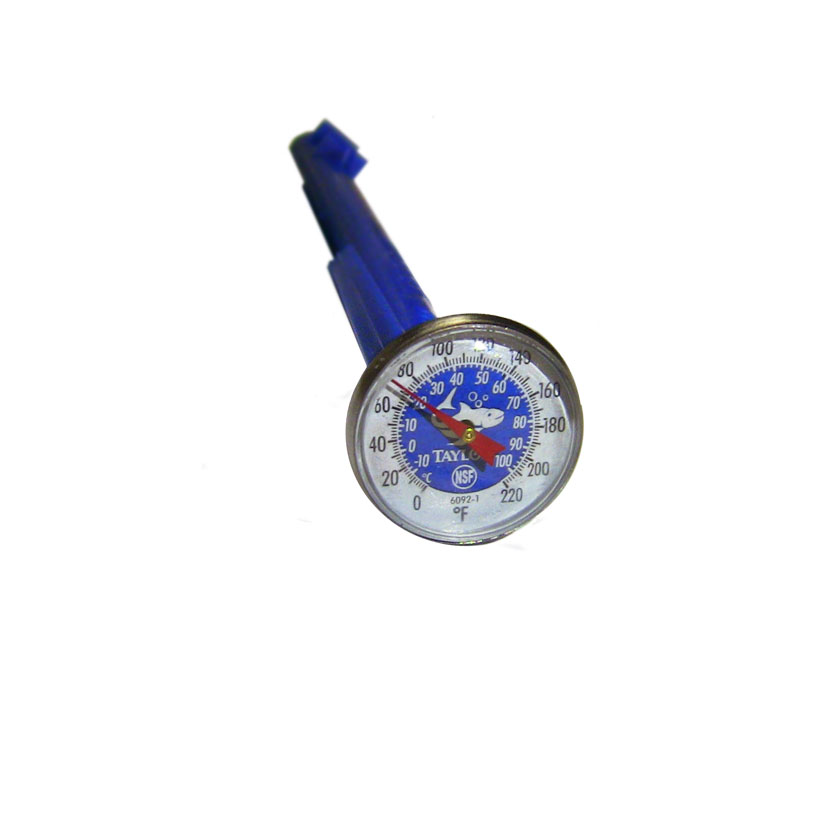

- Thermometer

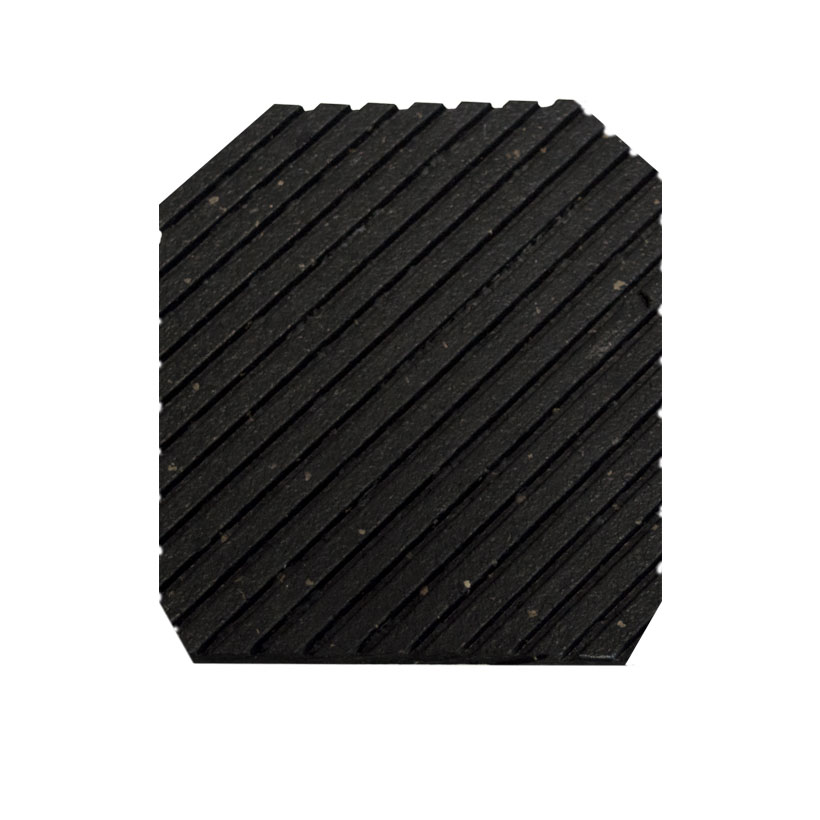

- Impact block

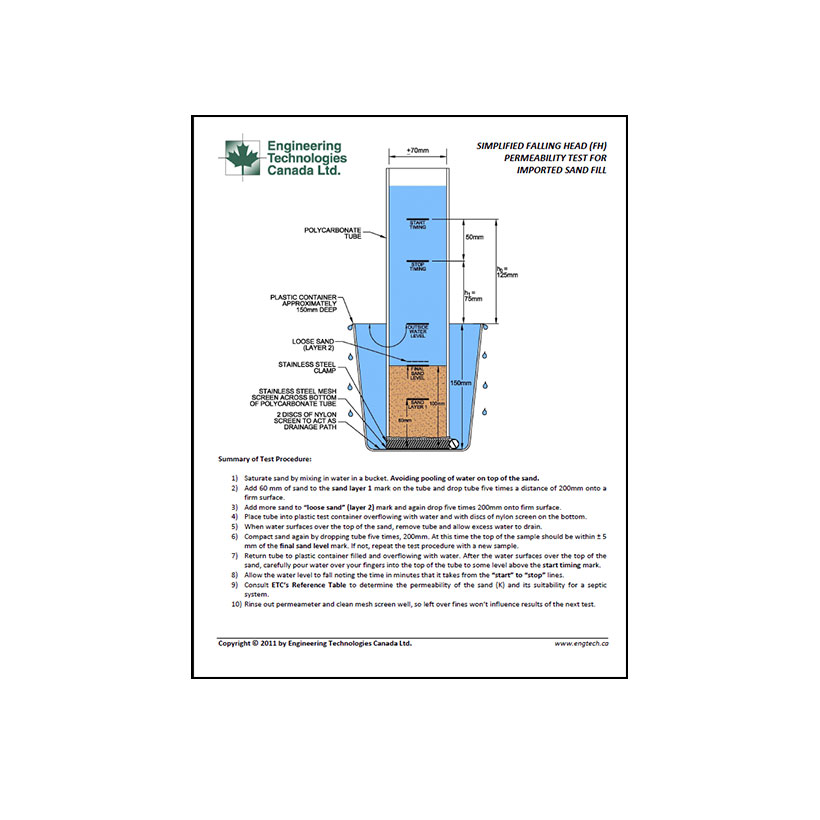

- ETC Falling Head Permeameter User Guide
- ETC Quick Reference Chart
*Not included but needed for conducting tests: (1) 5 gallon drop bucket, and (1) 2 gallon soil mixing bucket.
Feel free to contact us if you have any questions.
All prices are subject to change. Volume discount pricing for multiple kits or components may be available at the discretion of Dynamic Monitors. Contact us for more information.
Order online (preferred), or over the phone. Contact us at 1-888-747-7645 (SOIL) or 902-628-1705 if you have any questions.
